Catalog # 599501

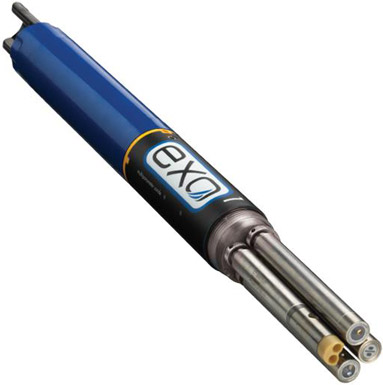

EXO1

Advanced water quality monitoring platform

The EXO1 multiparameter water quality sonde collects data with up to four user-replaceable smart sensors and an integral pressure transducer for depth.

Request Quote

Download

General specs | Sensor specs | User manual | Folleto (ESP) | Folleto (ENG)

Sonde options


Catalog # 599501-00 EXO1 Sonde, No Depth, 4 Sensor Ports
  • No depth sensor installed
  • Contains: Sonde, 2 "D" Batteries, Calibration Cup, Tool Kit, 2 Port Plugs, USB drive loaded with Manual and KOR Software
Catalog # 599501-01 EXO1 Sonde, 10 meter Depth, 4 Sensor Ports
  • Depth range: 0-10 meters
  • Contains: Sonde, 2 "D" Batteries, Calibration Cup, Tool Kit, 2 Port Plugs, USB drive loaded with Manual and KOR Software
Catalog # 599501-02 EXO1 Sonde, 100 meter Depth, 4 Sensor Ports
  • Depth range: 0-100 meters
  • Contains: Sonde, 2 "D" Batteries, Calibration Cup, Tool Kit, 2 Port Plugs, USB drive loaded with Manual and KOR Software
Catalog # 599501-03 EXO1 Sonde, 250 meter depth, 4 Sensor Ports
  • Depth range: 0-250 meters
  • Contains: Sonde, 2 "D" Batteries, Calibration Cup, Tool Kit, 2 Port Plugs, USB drive loaded with Manual and KOR Software
Catalog # 599501-04 EXO1 Sonde, 10 meter vented level depth, 4 Sensor Ports
  • Depth range: 0-10 meters
  • Contains: Sonde, 2 "D" Batteries, Calibration Cup, Tool Kit, 2 Port Plugs, USB drive loaded with Manual and KOR Software


Sensors


Catalog # 599870-01 EXO Conductivity/Temperature Sensor, Ti
  • Compatible with any EXO sonde
  • New flow channel design and high accuracy temperature
  • Incorporates wet-mate connector and welded titanium housing
Catalog # 599701 EXO pH Sensor Assembly, Guarded, Ti (Only for use in systems without a wiper.)
  • Compatible with any EXO sonde
  • Patented user replaceable sensor head
  • Incorporates wet-mate connector and welded titanium housing
Catalog # 599705 EXO pH/ORP Sensor Assembly, Guarded, Ti (Only for use in systems without a wiper.)
  • Compatible with any EXO sonde
  • Patented user replaceable sensor head
  • Incorporates wet-mate connector and welded titanium housing
Catalog # 599710 EXO Ammonium Sensor Assembly,Guarded, Ti
  • For Freshwater Use Only, 3 month warranty
  • Measures NH4
Catalog # 599711 EXO Chloride Sensor Assembly, Guarded, Ti
  • For Freshwater Use Only, 3 month warranty
  • Measures Cl-
Catalog # 599709 EXO Nitrate Sensor Assembly, Guarded, Ti
  • For Freshwater Use Only, 3 month warranty
  • Measures NO3
Catalog # 599100-01 EXO Optical DO Sensor, Ti
  • Compatible with any EXO sonde
  • User replaceable sensor cap (installed)
  • Incorporates wet-mate connector and welded titanium housing
Catalog # 599101-01 EXO Turbidity Sensor, Ti
  • Compatible with any EXO sonde
  • Wide range Sensor reads from 0-4000 FNU
  • Incorporates wet-mate connector and welded titanium housing
Catalog # 599102-01 EXO Total Algae - PC Sensor, Ti
  • Optimized for freshwater use - Phycocyanin
  • Includes cholorphyll and blue green alage sensors in a single Sensor
  • Incorporates wet-mate connector and sealed welded titanium design
Catalog # 599103-01 EXO Total Algae - PE Sensor, Ti
  • Optimized for Saltwater use - Phycoerythrin
  • Includes cholorphyll and blue green alage sensors in a single Sensor
  • Incorporates wet-mate connector and sealed welded titanium design
Catalog # 599104-01 EXO fDOM Sensor, Ti
  • AKA CDOM or UV Fluorometer
  • Incorporates wet-mate connector and sealed welded titanium design
Catalog # 599090-01 EXO Central Wiper, EXO2, Ti
  • Installs in center wiper port on EXO2 sonde only
  • Includes two wiper brushes and installation tool
  • Used in unattended monitoring deployments to reduce bio-fouling


Cables


Catalog # 599431-01 EXO Cable Coupler, Titanium
  • Used to connect two field cables or a field cable and flying lead cable together
  • High strength coupler for field use
Catalog # 599431-02 EXO Cable Coupler, Brass
  • Used to connect two field cables or a field cable and flying lead cable together
  • Low strength lab and light duty use
Catalog # 599040-2 EXO 2 meter Field Cable
  • Connects sonde to EXO Handheld Display or USB adaptor
  • Wet mate connectors and strain relief
Catalog # 599040-4 EXO 4 meter Field Cable
  • Connects sonde to EXO Handheld Display or USB adaptor
  • Wet mate connectors and strain relief
Catalog # 599040-10 EXO 10 meter Field Cable
  • Connects sonde to EXO Handheld Display or USB adaptor
  • Wet mate connectors and strain relief
Catalog # 599040-15 EXO 15 meter Field Cable
  • Connects sonde to EXO Handheld Display or USB adaptor
  • Wet mate connectors and strain relief
Catalog # 599040-33 EXO 33 meter Field Cable
  • Connects sonde to EXO Handheld Display or USB adaptor
  • Wet mate connectors and strain relief
Catalog # 599040-66 EXO 66 meter Field Cable
  • Connects sonde to EXO Handheld Display or USB adaptor
  • Wet mate connectors and strain relief
Catalog # 599040-100 EXO 100 meter Field Cable
  • Connects sonde to EXO Handheld Display or USB adaptor
  • Wet mate connectors and strain relief
Catalog # 599040-150 EXO 150 meter Field Cable
  • Connects sonde to EXO Handheld Display or USB adaptor
  • Wet mate connectors and strain relief
Catalog # 599040-200 EXO 200 meter Field Cable
  • Connects sonde to EXO Handheld Display or USB adaptor
  • Wet mate connectors and strain relief
Catalog # 599040-250 EXO 250 meter Field Cable
  • Connects sonde to EXO Handheld Display or USB adaptor
  • Wet mate connectors and strain relief
Catalog # 599040-300 EXO 300 meter Field Cable
  • Connects sonde to EXO Handheld Display or USB adaptor
  • Wet mate connectors and strain relief
Catalog # 599008-10 EXO 10 meter Flying Lead Cable
  • Connects EXO sonde to DCP Signal Output Adapter
Catalog # 599008-15 EXO 15 meter Flying Lead Cable
  • Connects EXO sonde to DCP Signal Output Adapter
Catalog # 599008-33 EXO 33 meter Flying Lead Cable
  • Connects EXO sonde to DCP Signal Output Adapter
Catalog # 599008-66 EXO 66 meter Flying Lead Cable
  • Connects EXO sonde to DCP Signal Output Adapter
Catalog # 599008-100 EXO 100 meter Flying Lead Cable
  • Connects EXO sonde to DCP Signal Output Adapter
Catalog # 599210-4 EXO 4 meter VENTED Flying Lead Cable
  • Connects EXO sonde to DCP Signal Output Adapter
Catalog # 599210-10 EXO 10 meter VENTED Flying Lead Cable
  • Connects EXO sonde to DCP Signal Output Adapter
Catalog # 599210-15 EXO 15 meter VENTED Flying Lead Cable
  • Connects EXO sonde to DCP Signal Output Adapter
Catalog # 599210-33 EXO 33 meter VENTED Flying Lead Cable
  • Connects EXO sonde to DCP Signal Output Adapter


Handheld


Catalog # 599960 EXO Handheld Display "2.0"
  • For interface with EXO Sonde via field cable
  • Standard features include GPS, temperature-compensated barometer, backlit keypad, wet-mate connector, color LED screen, IP-67 rating, built-in rechargeable battery, and lightweight design
Catalog # 599622 EXO Rechargeable Lithium-Ion Battery Pack (Not compatible with the new 599960 EXO Handheld. Only used with the legacy handheld, 599150.)
  • Used with 599150 EXO Handheld Display
  • Includes wall charger with user swappable plugs and one rechargeable battery pack
Catalog # 599810 EXO Signal Output Adapter - USB (Necessary for firmware updates)
  • Allows connections between EXO sonde and a PC
  • Allows connections between EXO handheld and a PC


Accessories


Catalog # 599867 EXO Anti Fouling C/T Screen
  • Set of Two copper screens for Conductivity/Temperature probe
Catalog # 599563 EXO1 Anti-Fouling Guard
  • Sensor Guard designed with copper alloy to inhibit growth and extend deployment time
Catalog # 599020-01 EXO1 Wheeled Carrying Case, Black
  • Hard-sided rolling case
  • Includes space for one EXO1 sonde, cables/adapters, Sensors, and some accessories
Catalog # 599470 EXO C/T Sensor Cleaning Brush
  • Kit including two cleaning brushes Part# 599375
Catalog # 599080 EXO1 Flow Cell
  • Includes flowcell, 3/8 inch and 1/4 inch fittings, lubricant and instructions
Catalog # 599786 EXO1 Calibration/Storage Cup
  • Replacement assembly includes: cup, sleeves, and seal
Catalog # 599471 EXO1 Sonde Weight Kit
  • Attaches to end of probe guard, for profiling or high current applications
    includes part 599065
Catalog # 599473 EXO1 Replacement Bail
  • Includes 599058 and replacement o-ring
Catalog # 599475 EXO 4-Pin Bulkhead Connector Port Plug
  • Used to seal unused ports
  • Includes 1 port plug with retaining nut
Catalog # 599594 EXO Tool Kit
  • Includes: 2 sensor removal/bluetooth activation tools, 1 battery cover tool, and depth port cleaning syringe
Catalog # 599680 EXO1 Replacement O-Ring Kit
  • Includes 5 o-rings and tube of lubricant
Catalog # 599677 EXO Sensor O-Ring Kit
  • Includes 10 sensor O-Rings
Catalog # 599110 DO Sensor Cap Replacement Kit
  • Replacement sensor cap for EXO optical dissolved oxygen sensor includes 599118, hydrating cap, and quick start guide
Catalog # 599595 EXO Coastal Anode Kit
  • One anode holder and two replacement anodes
  • Occupies a sensor port, required in long term brackish and salt water deployments, prevents corrosion on bulkhead and sensors
Catalog # 599520 EXO1 Coastal Anode Guard Weight Kit
  • Required in long-term brackish and salt water deployments, prevents corrosion on bulkhead and sensors
  • Zinc weight that attached to the bottom of sonde's sensor guard
  • Must be used in conjuntion with an Anti-Fouling Guard to function
Catalog # 599338 KOR User Interface Software USB
  • Copy of EXO user software on 2 GB usb drive
Catalog # 599668 EXO Sensor Retaining Nut Kit, Sensors, Ti
  • Replacement kit for locking nut and retaining ring kit for EXO sensors
  • Includes two nuts and two retaining rings
Catalog # 599669 EXO Sensor Retaining Nut Kit, Wiper, Ti
  • Replacement kit for locking nut and retaining ring kit for EXO central wiper
  • Includes two nuts and two retaining rings
Catalog # 599666 EXO1 Guard Assembly Kit
  • Bottom plate #599065
  • Standard polymer material
  • Guard Tube #599057
Catalog # 599673 EXO Central Wiper Brush Kit
  • Includes 1 wiper brush, screws & wrench
Catalog # 599665 EXO Replacement 6 pin Female Dummy Plug Assembly Kit
  • Includes locking sleeve for the EXO communication connector
Catalog # 599664 EXO Replacement 6 pin Male Dummy Plug Assembly Kit
  • Includes locking sleeve for the EXO2 auxillary connector
Catalog # 599676 EXO Wiper Brush Guard replacement Kit
  • Polymer protective guard, installs onto side of wiper
  • Reduces sediment accumulation in wiper
  • Includes two replacement guards
Catalog # 599469 EXO Replacement sensor tool and magnet activation kit
  • Includes two sensor tools
Catalog # 599352 Krytox Lubricant
  • One 0.5 oz tube and O-ring
Catalog # 006109 Dessicant Canister Kit
  • For vented level, long term monitoring
  • Recommended for use with vented EXO sondes
Catalog # 006108 Dessicant Cartridge Kit
  • For vented level
Catalog # 599800 EXO Signal Output Adapter - DCP
  • Wires into the end of YSI field cable via flying leads
  • Converts signal to RS-232 or SDI-12 for datalogger applications
Catalog # 599810 EXO Signal Output Adapter - USB
  • Allows connections between EXO sonde and a PC
  • Allows connections between EXO handheld and a PC
